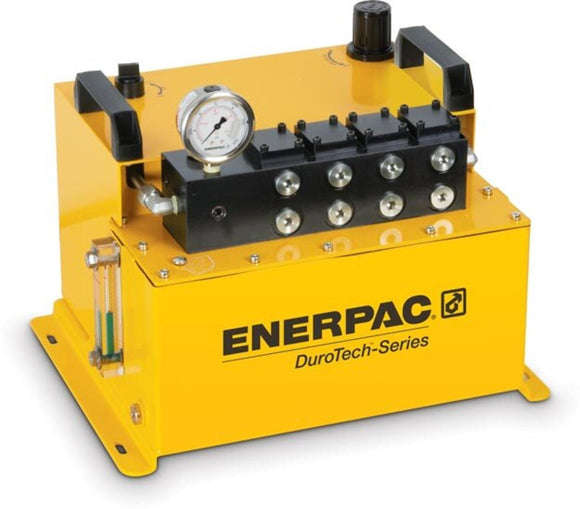

The Enerpac WAP30008D is an air-driven hydraulic power unit for high-cycle industrial workholding. Its dual pumping element and on-demand stall/restart operation maintain the selected pressure in a compatible circuit.
Key specifications
- Usable oil capacity: 415 in³ (1.8 gal)
- Maximum hydraulic working pressure: 5,280 psi at 110 psi air supply
- Maximum oil flow: 252 in³/min at 100 psi air and zero hydraulic pressure
- Required air-pressure range: 30–110 psi
- Maximum air consumption at 100 psi air: 20 scfm
- Hydraulic-to-air pressure ratio: 48:1
- Manifold: four-station D03
Before ordering
Confirm fixture pressure limits, required flow, valve pattern and available air supply. The stated maximum flow is measured without hydraulic back pressure; actual flow declines under load. Select compatible directional valves separately. Do not exceed 110 psi air pressure for this WAP30 model.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Pump Series | WAP Series |
|---|---|
| Power Source | Compressed Air |
| Rated Oil Flow | 252 in³/min @ 100 psi air |
| Pump Operation | Air Operated |
| Reservoir Capacity | 415 in³ |
| Valve Configuration | Four-Station DO3 Manifold |
| Gauge Included | Yes |
