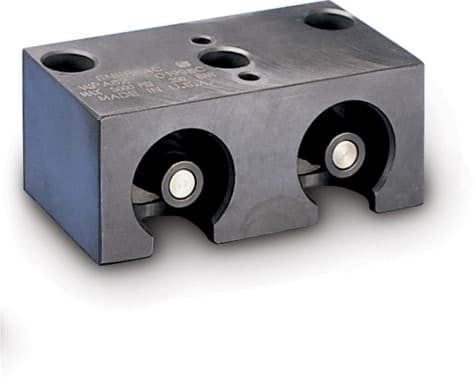

The Enerpac WPA62 is a 2-port automatic coupler for palletized workholding fixtures, rated for 5,000 psi. Weight: 4 lb.
Automatic couplers connect and disconnect the hydraulic supply to a fixture pallet without an operator, so pallets can be indexed and changed in automated machining cells. Position sensing feedback confirms the coupler state to the machine control.
Key features
- Sensing feedback of coupler position allows for fully automated applications
- Horizontal or vertical mounting for flexible installation on machine tools
- Available as 2 or 4 port model to provide a solution to various hydraulic circuit needs
- Adjustment stroke allows clearance for pallet indexing
- Coupler elements supplied with air blow-off nozzles to prevent damage from contamination
- Automatic coupler control box provides pre-programmed safety features to ensure proper sequencing of automatic coupler and fixture operations
Frequently asked questions
How many hydraulic ports does the WPA62 have?
2.
Can the WPA62 be mounted vertically?
Yes. Enerpac automatic couplers can be mounted horizontally or vertically.
BuyEnerpac.com is an authorized Enerpac distributor. This item typically ships within 2-3 days. Questions about fit or application? Call (704) 463-1070.
Specifications
| Product Family | Hydraulic Couplers |
|---|---|
| Product Type | Auto Coupler |
| Maximum Operating Pressure | 5,000 psi |
| Weight | 4 lb |
