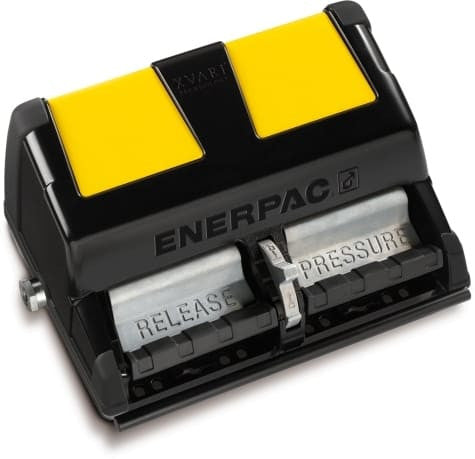

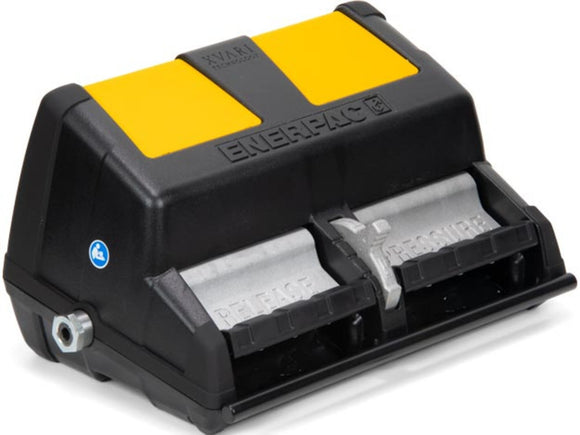

The Enerpac XA12 is an air hydraulic pump with 122 in³ oil capacity and 3-way, 3-position control.
Key specifications
- Maximum operating pressure: 10,000 psi
- Oil capacity: 122 in³
- Valve: 3-way, 3-position
- Application: single-acting cylinders
- Control configuration: foot operation with metered hydraulic flow
- Dynamic air pressure range: 30–125 psi
- Pressure gauge: not included
Before ordering
Confirm the tool pressure rating, required oil volume, valve operation and hose connections before ordering. Confirm the required air supply and air preparation. Match the valve to the cylinder action and return requirements.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Maximum Operating Pressure | 10,000 psi |
|---|---|
| Power Source | Air |
| Reservoir Capacity | 122 in³ |
| Usable Oil Capacity | 122 in³ |
| Valve Configuration | 3-way, 3-position |
| Valve Operation | Manual |
| Valve Function | Advance / Hold / Retract |
| Cylinder Compatibility | Single-Acting |
| Air Consumption | 10 - 35 scfm |
| Air Pressure Range | 30 - 125 psi |
| Maximum Flow at Rated Pressure | 15 in³/min |
| Output Flow Rate Load | 15 in³/min |
| Output Flow Rate No Load | 120 in³/min |
| Weight | 22.4 lb |
