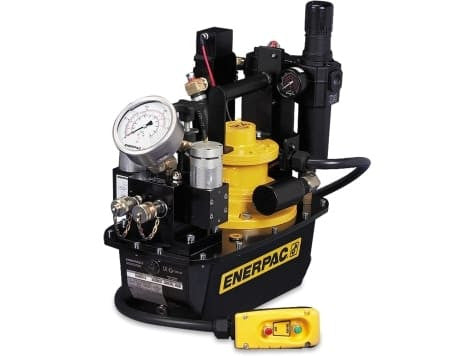

ZA4204TXQ Enerpac ZA4T Air-Driven Torque Wrench Pump is the standard 1.0-gallon Q configuration for 10,000 psi hydraulic bolting. It provides the ZA4T pumping and remote-control package without the roll cage used on ZA4204TXQR.
The Straightforward 1-Gallon ZA4T Q Configuration
This model is intended for Enerpac S-, W- and RSL-Series hydraulic torque wrenches and other compatible 10,000 psi circuits. The pendant gives the operator remote control over the bolting cycle, while the pressure gauge supports direct monitoring at the pump.
Enerpac's two-speed design reduces time spent filling the hydraulic circuit before pressure builds, then provides 60 in³/min at rated pressure. Buyers who want the same 1.0-gallon hydraulic configuration with extra physical protection should compare ZA4204TXQR; those needing more oil volume should compare ZA4208TXQ.
Specifications
| Pump Series | ZA4T Series |
|---|---|
| Power Source | Compressed Air |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 60 in³/min @ 10,000 psi |
| Reservoir Capacity | 1.0 gal |
| Usable Oil Capacity | 1.0 gal |
| Pump Speed | Two-Speed |
| Pump Operation | Air Operated |
| Valve Configuration | Torque Wrench Valve |
| Valve Operation | Air Operated / Remote Pendant |
| Air Pressure Range | 60–100 psi |
| Air Consumption | 20–100 scfm |
| Gauge Included | Yes |
