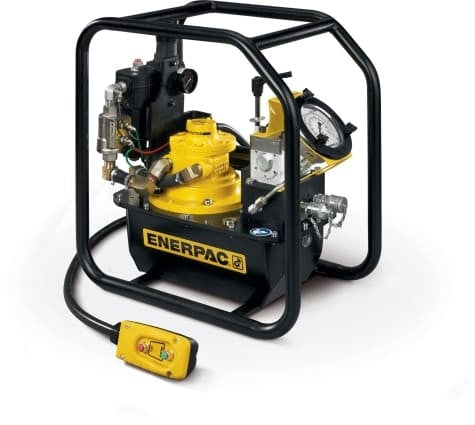

ZA4204TXQR Enerpac ZA4T Torque Wrench Pump combines the compact 1.0-gallon ZA4T reservoir with the 10,000 psi Q-series bolting configuration and a factory roll cage.
Compact Q-Series Pump With Added Jobsite Protection
The roll cage is the feature that separates this model from ZA4204TXQ. It surrounds the pump package for added protection and stability during transport and field use, while the hydraulic system remains configured for compatible 10,000 psi torque wrenches.
Remote pendant control keeps the operator near the bolted joint instead of at the pump. Enerpac lists 60 in³/min at 10,000 psi for this two-speed Z-Class configuration, and the included gauge provides a direct pressure reference. If more oil capacity is required, ZA4208TXQ increases the reservoir to 1.75 gallons.
Specifications
| Pump Series | ZA4T Series |
|---|---|
| Power Source | Compressed Air |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 60 in³/min @ 10,000 psi |
| Reservoir Capacity | 1.0 gal |
| Usable Oil Capacity | 1.0 gal |
| Pump Speed | Two-Speed |
| Pump Operation | Air Operated |
| Valve Configuration | Torque Wrench Valve |
| Valve Operation | Air Operated / Remote Pendant |
| Air Pressure Range | 60–100 psi |
| Air Consumption | 20–100 scfm |
| Gauge Included | Yes |
