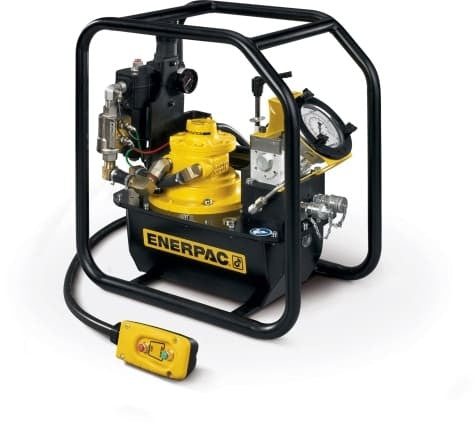

ZA4208TXQ Enerpac ZA4T Air-Driven Torque Wrench Pump is the larger-reservoir 10,000 psi option in this ZA4T group. Its 1.75-gallon oil capacity gives the bolting system more available fluid than the 1.0-gallon ZA4204 models while keeping the same Q-type torque-wrench pressure class.
More Reservoir Capacity for 10,000 psi Bolting
Enerpac configures the Q version for 10,000 psi hydraulic torque-wrench systems, including S-, W- and RSL-Series tools. A remote pendant lets the operator control the pump at the bolting point, and the glycerin-filled pressure gauge provides a direct hydraulic-pressure reference during the torque cycle.
The two-speed Z-Class pump design moves oil quickly while the circuit is filling, then supplies 60 in³/min at the full 10,000 psi rating. Choose ZA4208TXQ when the application benefits from the larger 1.75-gallon reservoir; ZA4204TXQ provides the same pressure class with a smaller 1.0-gallon oil supply.
Specifications
| Pump Series | ZA4T Series |
|---|---|
| Power Source | Compressed Air |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 60 in³/min @ 10,000 psi |
| Reservoir Capacity | 1.75 gal |
| Usable Oil Capacity | 1.75 gal |
| Pump Speed | Two-Speed |
| Pump Operation | Air Operated |
| Valve Configuration | Torque Wrench Valve |
| Valve Operation | Air Operated / Remote Pendant |
| Air Pressure Range | 60–100 psi |
| Air Consumption | 20–100 scfm |
| Gauge Included | Yes |
