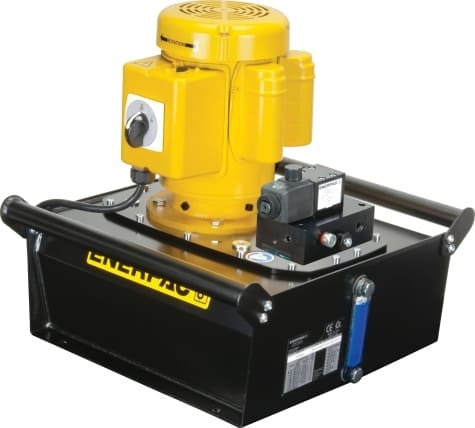

The selection case for ZE3104DB starts with LCD-equipped remote control. This Enerpac Electric Hydraulic Pump is one specific hydraulic and electrical arrangement within the broader family. The LCD-equipped control package is a meaningful upgrade when operating information and diagnostics at the pump are useful to the application.
The ZE platform is built around configurable hydraulic control. Manual, solenoid and Venturi-valve options let the same pump family serve different cylinder and operating requirements. The pendant moves pump control away from the power unit, which is useful when the operator needs to watch the tool or cylinder. Its LCD-equipped controls provide operating and diagnostic readouts at the pump. Hydraulic direction comes from a 3-way, 2-position dump valve, matched to single-acting service and advance / retract operation.
Choosing ZE3104DB Over a Near-Match
To avoid selecting a near-match with the wrong configuration, compare ZE3104DB with ZE3108DB: reservoir capacity is 1.2 gal on ZE3104DB versus 1.8 gal on ZE3108DB.
Check the hydraulic system's total oil demand against the 1.2 gal reservoir before final selection.
Its motor package is configured for 115V, single phase, 50/60 Hz, which is often the deciding factor between closely related model numbers.
Specifications
| Pump Series | ZE Series |
|---|---|
| Power Source | Electric |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 40 in³/min @ 10,000 psi |
| Reservoir Capacity | 1.2 gal |
| Valve Model | VE32D |
| Valve Configuration | 3-way, 2-position dump valve |
| Valve Operation | Solenoid Dump |
| Cylinder Compatibility | Single-Acting |
| Voltage | 115V |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
