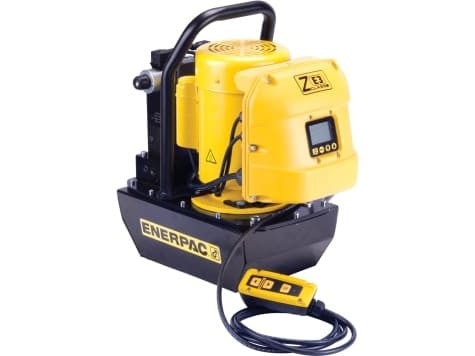

ZE3408SB is a model-specific Enerpac Electric Hydraulic Pump choice for LCD-equipped remote control. The hold position is useful in a double-acting circuit when the cylinder must be stopped between powered advance and powered return movements.
Enerpac offers the ZE family with multiple valve and control arrangements, so the pump can be matched to both the cylinder type and the way the operator needs to control the circuit. A 1 hp motor drives the pump, with rated-pressure output specified at 40 in³/min @ 10,000 psi. Remote pendant operation allows the operator to remain closer to the hydraulic work while controlling the pump. Its LCD-equipped controls provide operating and diagnostic readouts at the pump.
Matching ZE3408SB to the Hydraulic Circuit
Model selection becomes clearer against ZE3404SB. In that comparison, reservoir capacity is 1.8 gal on ZE3408SB versus 1.2 gal on ZE3404SB.
Check the hydraulic system's total oil demand against the 1.8 gal reservoir before final selection.
Valve selection on this model is deliberate: a 4-way, 3-position solenoid valve handles advance / hold / retract operation for double-acting equipment.
Specifications
| Pump Series | ZE Series |
|---|---|
| Power Source | Electric |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 40 in³/min @ 10,000 psi |
| Reservoir Capacity | 1.8 gal |
| Valve Model | VE43 |
| Valve Configuration | 4-way, 3-position solenoid valve |
| Valve Operation | Solenoid |
| Cylinder Compatibility | Double-Acting |
| Voltage | 115V |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
