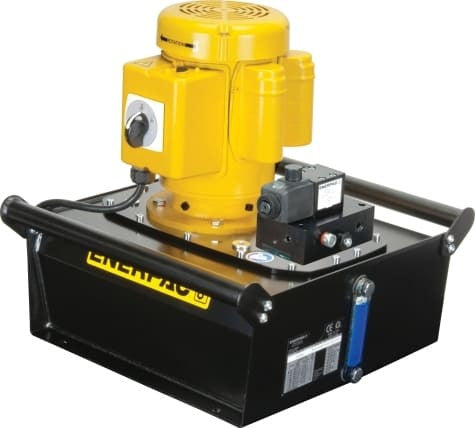

ZE4108DB is best understood by its configuration rather than by the series name alone. This Enerpac Electric Hydraulic Pump is set up for LCD-equipped remote control. The 1.8 gal reservoir sits between the smallest and largest capacities offered in this group, making oil-volume demand an important comparison point.
ZE4110DB is a natural cross-check during selection. Relative to that model, reservoir capacity is 1.8 gal on ZE4108DB versus 2.6 gal on ZE4110DB. This is the model-level change that should be confirmed before ordering.
Within the ZE range, valve choice and flow group are major selection points. ZE3 and ZE4 models use different motor sizes and rated-pressure flow levels. A 1.5 hp motor drives the pump, with rated-pressure output specified at 60 in³/min @ 10,000 psi. The pendant moves pump control away from the power unit, which is useful when the operator needs to watch the tool or cylinder. The LCD control package adds pump status and diagnostic information.
Check the hydraulic system's total oil demand against the 1.8 gal reservoir before final selection.
Valve selection on this model is deliberate: a 3-way, 2-position dump valve handles advance / retract operation for single-acting equipment.
Specifications
| Pump Series | ZE Series |
|---|---|
| Maximum Operating Pressure | 10,000 psi |
| Power Source | Electric |
| Motor Power | 1.5 hp |
| Voltage | 115V |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
| Rated Oil Flow | 60 in³/min @ 10,000 psi |
| Flow Group | ZE4 |
| Reservoir Capacity | 1.8 gal |
| Valve Model | VE32D |
| Valve Configuration | 3-way, 2-position dump valve |
| Valve Operation | Solenoid Dump |
| Valve Function | Advance / Retract |
| Venturi Valve Technology | No |
| Pendant Control | Yes |
| LCD Control | Yes |
| Cylinder Compatibility | Single-Acting |
