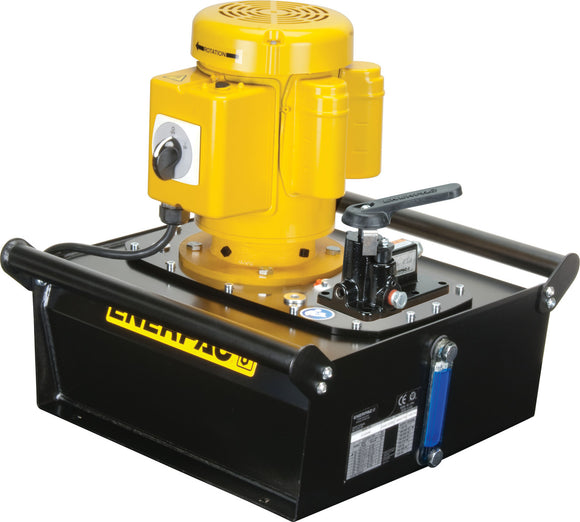

Within the Enerpac Electric Hydraulic Pump range, ZE4220MB is differentiated by its single-acting advance / retract operation setup. The 5.2 gal reservoir sits between the smallest and largest capacities offered in this group, making oil-volume demand an important comparison point.
Model-Level Guidance for ZE4220MB
This is a local-control configuration; the operator changes hydraulic direction at the pump valve. The control package is a 3-way, 2-position manual valve for single-acting circuits, providing advance / retract movement.
Verify site power against the 115V requirement; a nearby suffix may represent a different electrical version.
Model selection becomes clearer against ZE4208MB. In that comparison, reservoir capacity is 5.2 gal on ZE4220MB versus 1.8 gal on ZE4208MB.
Specifications
| Pump Series | ZE Series |
|---|---|
| Maximum Operating Pressure | 10,000 psi |
| Power Source | Electric |
| Motor Power | 1.5 hp |
| Voltage | 115V |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
| Rated Oil Flow | 60 in³/min @ 10,000 psi |
| Flow Group | ZE4 |
| Reservoir Capacity | 5.2 gal |
| Valve Model | VM32 |
| Valve Configuration | 3-way, 2-position manual valve |
| Valve Operation | Manual |
| Valve Function | Advance / Retract |
| Venturi Valve Technology | No |
| Pendant Control | No |
| LCD Control | No |
| Cylinder Compatibility | Single-Acting |
