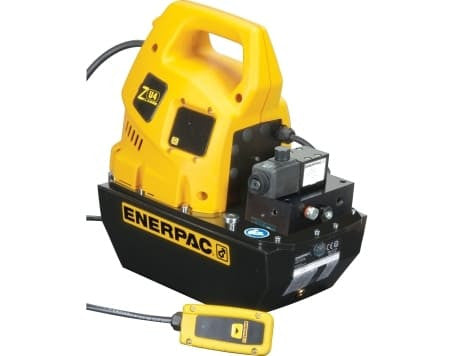

ZU4108DB is an Enerpac ZU4 Electric Hydraulic Pump configured around LCD-equipped remote control. The LCD-equipped control package is a meaningful upgrade when operating information and diagnostics at the pump are useful to the application.
Enerpac’s ZU4 platform uses the Z-Class two-stage pump design with a universal electric motor, combining high-pressure capability with higher low-pressure flow. Remote pendant operation allows the operator to remain closer to the hydraulic work while controlling the pump. Its LCD-equipped controls provide operating and diagnostic readouts at the pump. For single-acting equipment, ZU4108DB uses a 3-way, 2-position dump valve with advance / retract functionality.
Control and Power Decisions for ZU4108DB
The adjacent model ZU4104DB helps clarify the choice. reservoir capacity is 1.8 gal on ZU4108DB versus 1.2 gal on ZU4104DB; that is the key separation between these two otherwise related pumps.
Verify site power against the 115V requirement; a nearby suffix may represent a different electrical version.
Specifications
| Pump Series | ZU4 Series |
|---|---|
| Power Source | Electric |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 60 in³/min @ 10,000 psi |
| Reservoir Capacity | 1.8 gal |
| Valve Model | VE32D |
| Valve Configuration | 3-way, 2-position dump valve |
| Valve Operation | Solenoid Dump |
| Cylinder Compatibility | Single-Acting |
| Voltage | 115V |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
