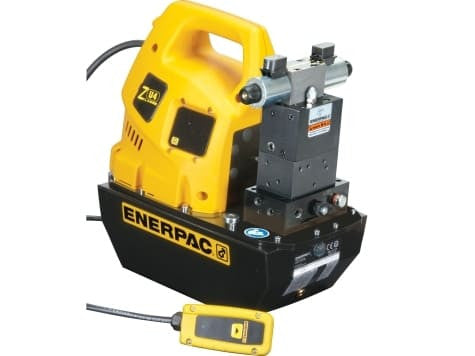

The value of ZU4308SB is in the exact combination of controls and power it provides. This Enerpac ZU4 Electric Hydraulic Pump is built around LCD-equipped remote control. This is a hold-capable single-acting configuration, which matters when the application needs to stop and maintain cylinder position before pressure is released for return.
The Practical Difference With ZU4308SB
For cycle planning, the key output figure is 60 in³/min @ 10,000 psi; the motor size is 1.7 hp. Remote pendant operation allows the operator to remain closer to the hydraulic work while controlling the pump. Its LCD-equipped controls provide operating and diagnostic readouts at the pump.
Check the hydraulic system's total oil demand against the 1.8 gal reservoir before final selection.
To avoid selecting a near-match with the wrong configuration, compare ZU4308SB with ZU41108SB: valve arrangement is 3-way, 3-position solenoid valve on ZU4308SB versus 3-way, 3-position solenoid Venturi valve on ZU41108SB.
Specifications
| Pump Series | ZU4 Series |
|---|---|
| Power Source | Electric |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 60 in³/min @ 10,000 psi |
| Reservoir Capacity | 1.8 gal |
| Valve Model | VE33 |
| Valve Configuration | 3-way, 3-position solenoid valve |
| Valve Operation | Solenoid |
| Cylinder Compatibility | Single-Acting |
| Voltage | 115V |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
