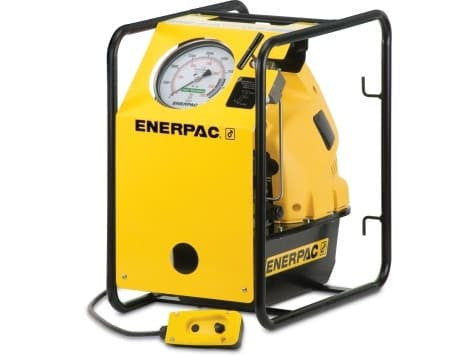

For a system that requires manual valve control, ZUTP1500E is the corresponding Enerpac ZUTP Electric Tensioning Pump configuration. The 230V electrical configuration is one of the model-level choices that must match the available site power.
Understanding the ZUTP1500E Arrangement
A practical comparison is ZUTP1500B. Between the two, input voltage is 230V on ZUTP1500E versus 115V on ZUTP1500B. That gives the buyer a concrete reason to choose one model over the other.
The ZUTP family is purpose-built for bolt tensioning at ultra-high hydraulic pressure. Enerpac achieves that pressure without a separate intensifier. The hydraulic performance point for this model is 20 in³/min @ 21,750 psi, paired with a 1.7 hp motor. This version uses a manual tensioning valve for hydraulic direction control.
This model is built for 230V, single phase power, making the electrical supply an important distinction from otherwise similar variants.
Check the hydraulic system's total oil demand against the 1.0 gal reservoir before final selection.
Specifications
| Pump Series | ZUTP Series |
|---|---|
| Power Source | Electric |
| Maximum Operating Pressure | 21,750 psi |
| Rated Oil Flow | 20 in³/min @ 21,750 psi |
| Reservoir Capacity | 1.0 gal |
| Valve Configuration | Manual tensioning valve |
| Valve Operation | Manual |
| Voltage | 230V |
| Phase | Single Phase |
