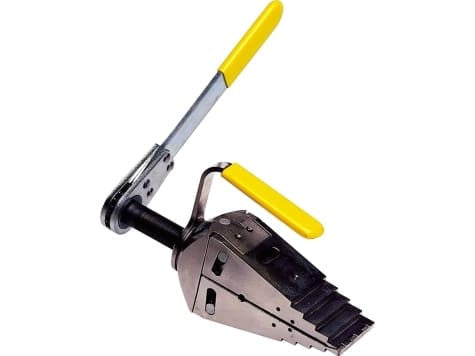

The Enerpac FSM8 is a mechanical wedge flange spreader for controlled joint separation. Its stepped wedge requires a 0.24" initial access gap.
Key specifications
- Maximum spreading force: 8 tons
- Minimum tip clearance: 0.24"
- Maximum spread: 3.16"
- Operation: mechanical
Included components
- FSM8 flange spreader
- SB1 safety block
- SW22 ratchet spanner
Before ordering
Confirm joint clearance, contact geometry and required separation force. Use the safety block and follow manufacturer spreading procedures.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Product Type | Mechanical Spreader |
|---|---|
| Maximum Spread | 3.16 in |
| Power Source | Mechanical |
| Maximum Spreading Force | 8 ton |
| Tip Clearance | 0.24 in |
| Weight | 14.3 lb |
