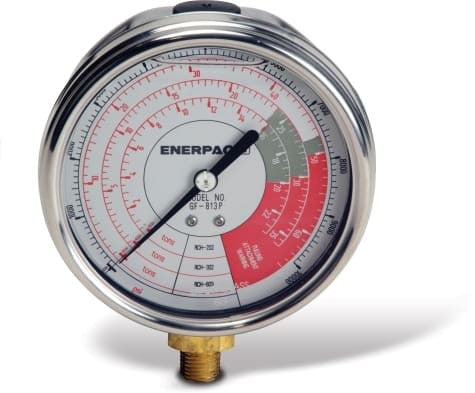

The Enerpac GF813P combines a hydraulic pressure scale with cylinder-specific force scales. Use the force readings only with the cylinder applications listed below.
Key specifications
- Pressure range: 0–10,000 psi
- Face diameter: 4"
- Connection: 1/4" NPTF
- Fill: glycerin
- Accuracy: ±1% of full scale
- Force-scale application: 20-, 30- and 60-ton RCH and RRH cylinders
- Force scale: Separate scales to 23.5, 36 and 65 tons
Before ordering
Confirm the cylinder model before relying on the force scale. Gauge scale limits are not cylinder load ratings; stay within the rated capacity of the cylinder and the complete system.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
