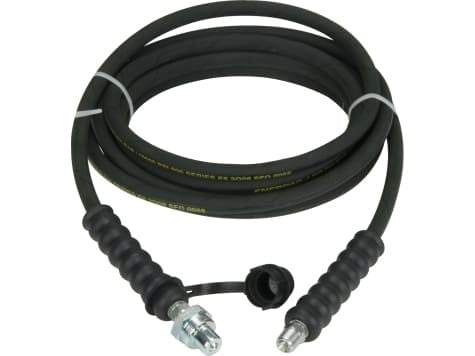

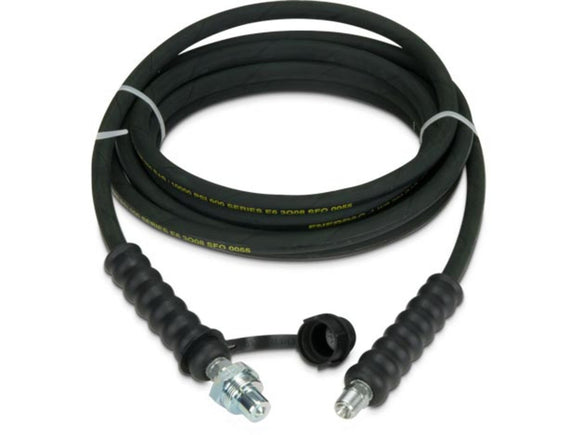

The Enerpac HC9220 is a 20-foot rubber hydraulic hose with a 0.25" internal diameter. One end has a 3/8" NPTF male thread; the other has a CH604 high-flow male coupler for a matching CR400 female half.
Key specifications
- Hose length: 20 ft
- Internal diameter: 0.25"
- Hose material: Rubber
- End one: 3/8" NPTF male thread
- End two: CH604 high-flow male coupler
- Maximum operating pressure: 10,000 psi (700 bar)
- Construction: rubber-coated hose with two steel wire braid layers
Before ordering
Choose by length, internal diameter and the connection at each end. Match the coupler series where fitted; port thread size and hose bore are different specifications. Route the hose without kinks or sharp bends and verify the pressure rating of every connected component.
