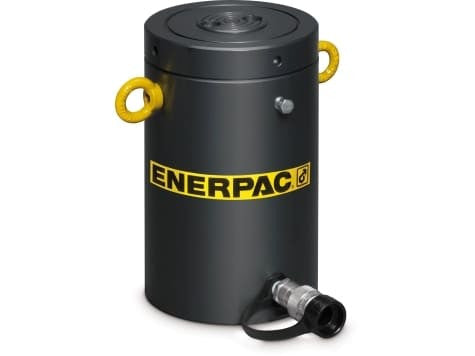

HCL-10012 100 Ton Lock Nut Cylinder
Model : HCL10012 Series : HCL Product Lines : Industrial Tools Lock nut provides positive and safe mechanical load holding Low friction locking rings spin easy, save time and effort Designed to withstand 10% side-load up to 90% of maximum stroke Hardened surface resists side-loading and cyclic wear Overflow port as stroke limiter to prevent plunger blow-out Weather protected, inside and out Replaceable bearings enclose the plunger for support throughout the stroke Certified lifting eyes and base mounting holes
Model : HCL10012 Series : HCL Product Lines : Industrial Tools Lock nut provides positive and safe mechanical load holding Low friction locking rings spin easy, save time and effort Designed to withstand 10% side-load up to 90% of maximum stroke Hardened surface resists side-loading and cyclic wear Overflow port as stroke limiter to prevent plunger blow-out Weather protected, inside and out Replaceable bearings enclose the plunger for support throughout the stroke Certified lifting eyes and base mounting holes
Specifications
| Product Family | Hydraulic Cylinders |
|---|---|
| Series | HCL |
| Cylinder Type | High Tonnage Hydraulic Cylinders |
| Load Capacity | 113 Ton |
| Cylinder Stroke | 11.81 in |
| Cylinder Action | Single Acting |
| Return Type | Load Return |
| Cylinder Material | Steel |
| Plunger Type | Solid |
| Lock Nut | Yes |
| Low Height | No |
