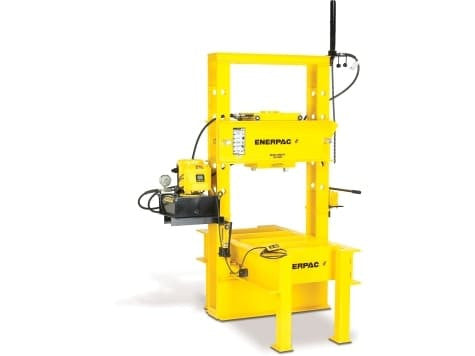

IPR200D13-2 w/ ZE5420SG-N
Model : IPR20075 Series : IPR Product Lines : Industrial Tools Quality welded frame for maximum strength and long life Exclusive "Hydra-Lift™" bed for effortless adjustment of the vertical daylight (10-ton models are manual) Roller head design is standard to allow movement and locking of the cylinder from side to side(10-ton, 25-ton, and 30-ton are manual) All models in the Quick Selection Chart have been matched to a pump, cylinder, hoses and gauge, offering the complete package
Model : IPR20075 Series : IPR Product Lines : Industrial Tools Quality welded frame for maximum strength and long life Exclusive "Hydra-Lift™" bed for effortless adjustment of the vertical daylight (10-ton models are manual) Roller head design is standard to allow movement and locking of the cylinder from side to side(10-ton, 25-ton, and 30-ton are manual) All models in the Quick Selection Chart have been matched to a pump, cylinder, hoses and gauge, offering the complete package
Specifications
| Pump Model | ZE5420SGN |
|---|---|
| Cylinder Type | Double-Acting, Hydraulic Return |
| Load Capacity | 200 Ton |
| Cylinder Stroke | 13 in |
| Maximum Operating Pressure | 10,000 psi |
| Cylinder Model Number | RR20013 |
| Maximum Bed Width | 48 in |
| Maximum Vertical Daylight | 51 in |
| Pressing Speed | 22.1 in/sec |
| Rapid Advance Speed | 3.1 in/sec |
| Vertical Daylight Maximum a | 51 in |
| Vertical Daylight Minimum a | 11 in |
