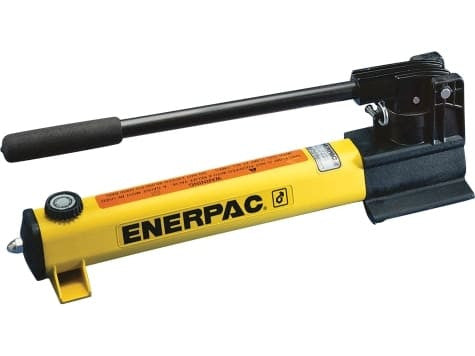

The Enerpac P2282 is a hand-operated hydraulic pump with 60 in³ of usable oil capacity and a maximum pressure of 40,000 psi. Two-speed operation provides a low-pressure stage for initial movement and a high-pressure stage as resistance increases.
Key specifications
- Maximum operating pressure: 40,000 psi
- Usable oil capacity: 60 in³
- Pump speeds: 2
- Operation: hand-operated
- Application: compatible ultra-high-pressure test systems
Before ordering
Use with a compatible ultra-high-pressure test circuit. Confirm the pressure rating and fitting compatibility of every tube, hose and component; standard 10,000 psi equipment is not suitable for a 40,000 psi circuit.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Pump Series | P/11 Series |
|---|---|
| Maximum Operating Pressure | 40,000 psi |
| Power Source | Manual |
| Oil Displacement - 1st Stage | 0.99 in³/stroke |
| Oil Displacement - 2nd Stage | 0.037 in³/stroke |
| Pump Speed | Two-Speed |
| Pump Operation | Hand Operated |
| Reservoir Capacity | 60 in³ |
| Valve Configuration | Release Valve |
| Valve Operation | Manual |
| Valve Function | Pressurize / Hold / Release |
| ATEX Certified | No |
| Gauge Included | No |
