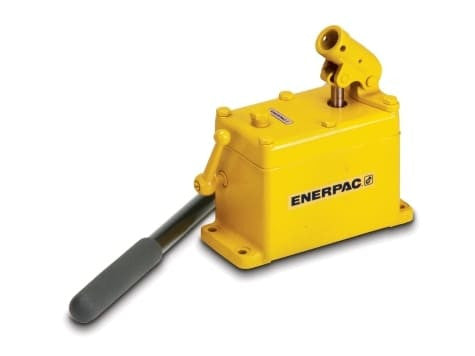

The Enerpac P51 is a hand-operated hydraulic pump with 50 in³ of usable oil capacity and a maximum pressure of 3,000 psi. Single-speed operation supplies oil through one pumping stage.
Key specifications
- Maximum operating pressure: 3,000 psi
- Usable oil capacity: 50 in³
- Pump speeds: 1
- Operation: hand-operated
- Cylinder application: compatible single-acting cylinders
- Operating position: horizontal only
Before ordering
Match the pressure, oil volume and valve arrangement to the cylinder and hose requirements. Choose sufficient usable oil capacity for the complete circuit. Cylinder, hose and gauge are sold separately.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Pump Series | P-Series Low Pressure |
|---|---|
| Power Source | Manual |
| Maximum Operating Pressure | 3,000 psi |
| Reservoir Capacity | 50 in³ |
| Pump Speed | Single-Speed |
| Pump Operation | Hand Operated |
| Valve Configuration | Release Valve |
| Valve Operation | Manual |
| Cylinder Compatibility | Single-Acting |
| Gauge Included | No |
