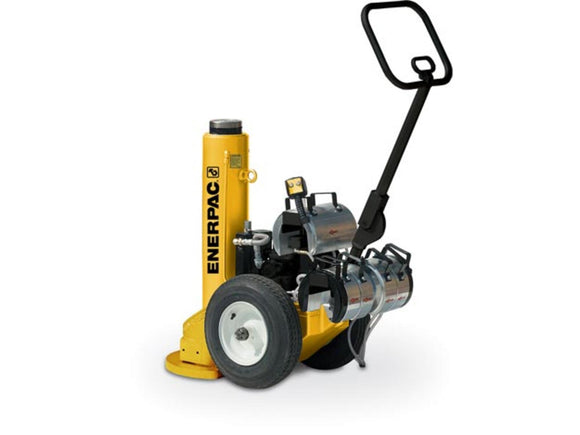

The Enerpac PRASA10016L is a portable POW’R-RISER hydraulic lifting jack for suitable heavy-equipment lifting applications. It provides a 16" hydraulic stroke with pneumatic valve control.
Key specifications
- Rated lifting capacity: 100 tons
- Stroke: 16"
- Power source: compressed air; 80 psi, 50 scfm
- Valve control: pneumatic
- Maximum operating pressure: 10,000 psi
Before ordering
Confirm lifting points, floor capacity, starting height, stability and travel. Order model-compatible extensions, spacers and mechanical support accessories separately. Mechanically secure the raised load according to manufacturer procedures.
Repair kits and related equipment
- 54401K cylinder seal kit — For the specified 41917SR cylinder assembly in the PRA_A10016L jack family. Confirm the installed cylinder assembly before ordering.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Product Type | POW'R-RISER Jack Pneumatic |
|---|---|
| Load Capacity | 100 Ton |
| Stroke | 16 in |
| Maximum Operating Pressure | 10,000 psi |
| Power Source | Air |
| Valve Configuration | Pneumatic |
| Base Dimension (W x L) | 24 x 18 in |
| Collapsed Height | 26 in |
| Collapsed Height (A) | 26 in |
| Handle Height | 56 in |
| Jack Capacity Advance | 100 ton |
| Max Stack Height with Extensions | 21 in |
| Outside Diameter (B) | 7 in |
| Saddle Diameter (D) | 4 in |
| Weight | 510 lb |
