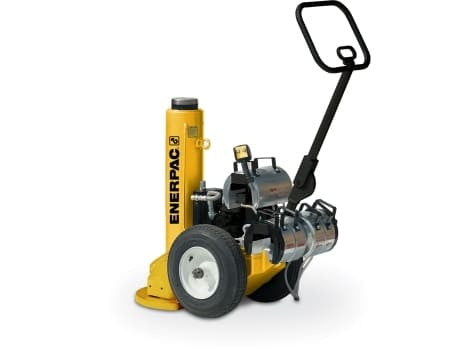

PRASA20016L 200 Ton, 15.3 in Stroke, Pneumatic POW'R-RISER Lifting Jack

The Enerpac PRASA20016L is a 200 ton POW'R-RISER lifting jack with 15.3 in of stroke, powered by an air-driven pump (50 scfm, 80 psi air supply). Collapsed height is 26 in, and the optional SUP-R-STACK extension system adds up to 21 in of lifting height. The jack weighs 640 lb and has a 4 in saddle.

POW'R-RISER jacks are self-contained, wheeled lifting jacks for heavy equipment, vehicle and rail maintenance. The cylinder, pump and controls are housed in a fully enclosed 24 in wide frame with no exposed hoses or fittings. A three-position handle makes the jack easy to tilt back and roll into position, and 4 in of ground clearance helps it travel over rail and rough terrain.

Key features

• 4-inch ground clearance for transport over rail and rough terrain
• Three-position handle provides easy tilt back and transport
• Complies with ASME/ANSI B30.1:2015 & CE specifications
• Easy-to-change external filter minimizes down time
• Rugged, fully enclosed 24-inch wide frame with no exposed fittings or hoses
• Optional SUP-R-STACK extension system allows lifting at all heights without blocking

Before you order

SUP-R-STACK extensions are optional and sold separately. Base footprint is 24 x 20 in.

Frequently asked questions

What is the capacity and stroke of the Enerpac PRASA20016L?
200 tons with 15.3 in of stroke, at a maximum operating pressure of 10,000 psi.

What does the PRASA20016L need for power?
Shop air: 50 scfm, 80 psi.

How low and how high does the PRASA20016L go?
Collapsed height is 26 in. Add the 15.3 in stroke and up to 21 in more with the optional SUP-R-STACK extensions.

BuyEnerpac.com is an authorized Enerpac distributor. This item typically ships within 2-3 days. Questions about fit or application? Call (704) 463-1070.
