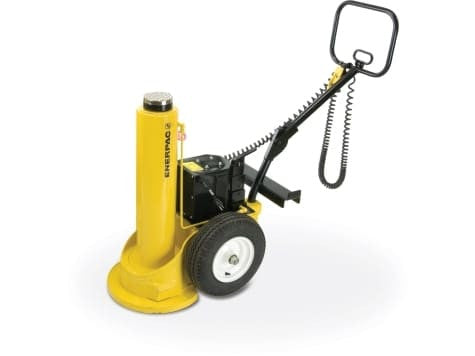

The Enerpac PREMB15016L is a portable POW’R-RISER hydraulic lifting jack for suitable heavy-equipment lifting applications. It provides a 15.5" hydraulic stroke with manual valve control.
Key specifications
- Rated lifting capacity: 150 tons
- Stroke: 15.5"
- Power source: 115 VAC, single-phase
- Valve control: manual
- Maximum operating pressure: 10,000 psi
Before ordering
Confirm lifting points, floor capacity, starting height, stability and travel. Order model-compatible extensions, spacers and mechanical support accessories separately. Mechanically secure the raised load according to manufacturer procedures.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Product Type | POW'R-RISER Jack Electric |
|---|---|
| Load Capacity | 150 Ton |
| Stroke | 15.5 in |
| Maximum Operating Pressure | 10,000 psi |
| Power Source | Electric Pump (115 VAC, 1ph., 50-60 Hz, 20 A) |
| Valve Configuration | Manual |
| Base Dimension (W x L) | 24 x 18 in |
| Collapsed Height | 26 in |
| Collapsed Height (A) | 26 in |
| Handle Height | 56 in |
| Jack Capacity Advance | 150 ton |
| Max Stack Height with Extensions | 21 in |
| Outside Diameter (B) | 8 in |
| Saddle Diameter (D) | 4 in |
| Weight | 570 lb |
