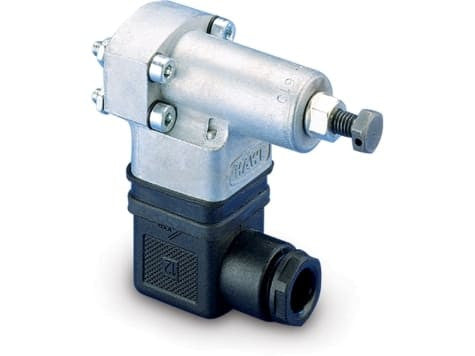

PSCK8 (PSCK-8) Pressure Switch Kit
Model : PSCK8 Series : PSCK Product Lines : Workholding Tools Adjustable, will open or close electrical contacts when desired preset pressure is reached Lockable adjustment screw Enerpac remote mounted pressure switches monitor the hydraulic system to determine any change of pressure. The signal can then be used to control the pump, or other peripheral devices Enerpac workholding pressure switches provide reliable electrical control of hydraulic power Compact design minimizes space requirements on fixture Pressure switches are easily adjustable to meet system requirements.
Model : PSCK8 Series : PSCK Product Lines : Workholding Tools Adjustable, will open or close electrical contacts when desired preset pressure is reached Lockable adjustment screw Enerpac remote mounted pressure switches monitor the hydraulic system to determine any change of pressure. The signal can then be used to control the pump, or other peripheral devices Enerpac workholding pressure switches provide reliable electrical control of hydraulic power Compact design minimizes space requirements on fixture Pressure switches are easily adjustable to meet system requirements.
Specifications
| Product Family | Hydraulic Pump Accessories |
|---|---|
| Product Type | Electrical Switch |
| Maximum Operating Pressure | 7,500 psi |
| Accuracy | 2% |
| Adjustable Pressure Range | 100 - 350 psi |
| Deadband | 261 - 501 psi |
| Electrical Specification | 115 VAC, 50/60 Hz @ 2A |
| Maximum Oil Flow | 427 cu in/min |
| Minimum Operating Pressure | 500 psi |
| Oil Port | Manifold mount |
| Switch Point Repeatability Percent of Range | +/- 2 |
| Weight | 0.8 lb |
