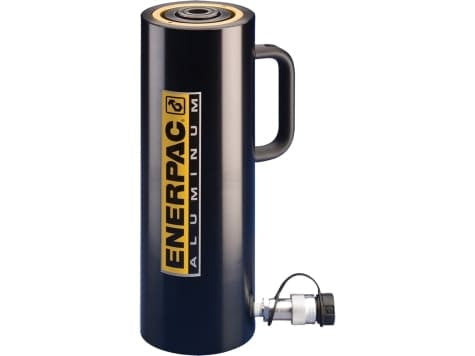

The Enerpac RAC1502 is a 175.9 ton single-acting aluminum hydraulic cylinder with a 1.97 in stroke, rated for 10,000 psi. Collapsed height is 9.56 in and it weighs 55.8 lb.
RAC cylinders are made from aluminum, so they weigh roughly half as much as steel cylinders of the same capacity and are easier to carry, position and set up for maintenance, construction and field work. A hard-coat anodized finish resists corrosion, the hardened steel saddle and steel base plate protect against load damage, and a high-strength return spring retracts the plunger after each lift. Rated for 10,000 psi and compliant with ASME B30.1.
Key features
- High-strength return spring for rapid cylinder retraction
- Composite bearings prevent metal-to-metal contact, increasing cylinder life and resistance to side-loads of up to 10%
- Hard coat finish on all surfaces resists damage and extends cylinder life
- For protection against load-induced damage, a hardened steel saddle is standard on all models
- Steel base plate is standard on RAC 20 ton models and above
- Integral stop ring prevents plunger over-travel, and can withstand the full cylinder capacity
- CR400 coupler and dust cap included on all models
- All cylinders meet ASME B-30.1 standards
Before you order
For the longest service life, Enerpac recommends using no more than 80 percent of the rated capacity and stroke. Always use a gauge to monitor system pressure.
Frequently asked questions
What is the capacity and stroke of the Enerpac RAC1502?
175.9 tons at 10,000 psi, with 1.97 in of stroke and a collapsed height of 9.56 in.
Is the RAC1502 single-acting or double-acting?
Single-acting with spring return. Use a hand pump or a powered pump with a 3-way valve and one hose.
Does the RAC1502 come with a coupler?
Yes. Enerpac includes a CR400 coupler and dust cap on this model.
BuyEnerpac.com is an authorized Enerpac distributor. This item typically ships within 2-3 days. Questions about fit or application? Call (704) 463-1070.
Specifications
| Product Family | Hydraulic Cylinders |
|---|---|
| Series | RAC |
| Cylinder Type | Aluminum Hydraulic Cylinders |
| Load Capacity | 175.9 Ton |
| Cylinder Stroke | 1.97 in |
| Cylinder Action | Single Acting |
| Return Type | Spring Return |
| Cylinder Material | Aluminum |
| Plunger Type | Solid |
| Lock Nut | No |
| Low Height | No |
