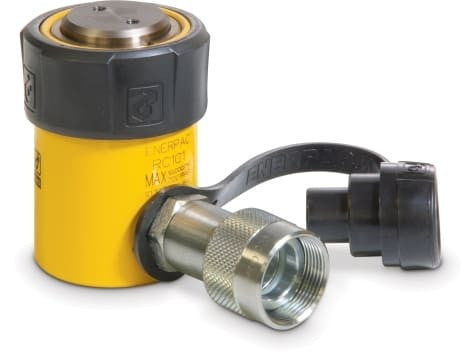

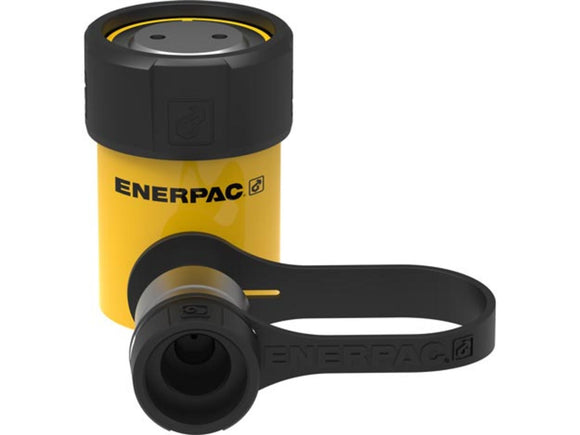

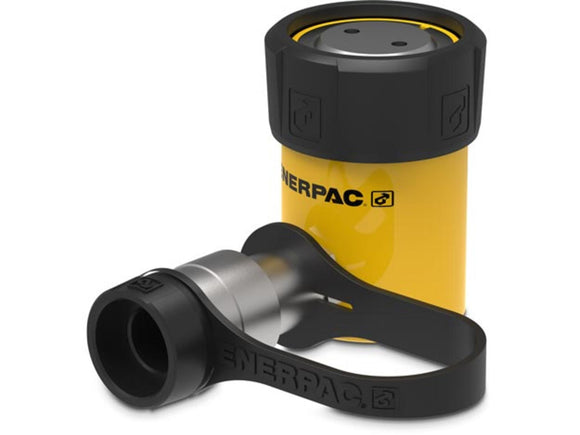

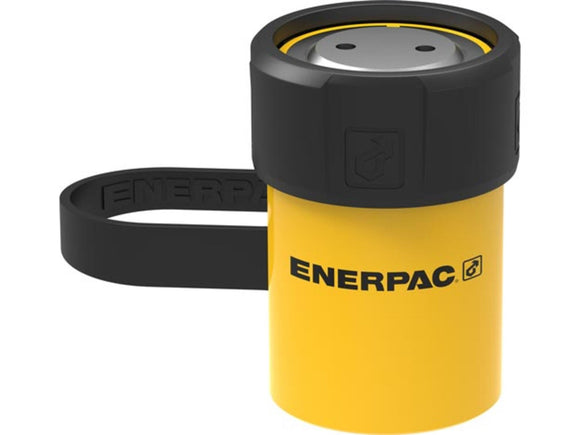

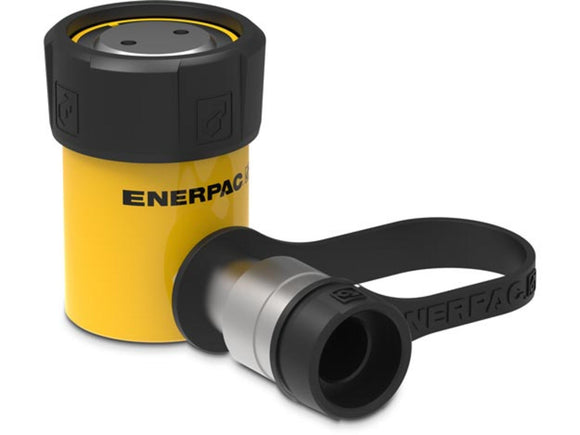

The Enerpac RC101 is a 10-ton-class RC-Series hydraulic cylinder with a 1.00" stroke. Hydraulic pressure extends the solid plunger, and the internal spring returns it when pressure is released.
Key specifications
- Capacity class: 10 tons
- Maximum cylinder force: 11.2 US tons at rated pressure
- Stroke: 1.00"
- Collapsed height: 3.53"
- Oil capacity: 2.24 in³
- Action: single-acting
- Return: spring
- Plunger: solid
- Maximum operating pressure: 10,000 psi (700 bar)
- Saddle: non-removable
Included components
- RC101 hydraulic cylinder
- CR400 high-flow female coupler
Before ordering
Match required load, travel and available clearance, and size the pump reservoir for the cylinder and hose oil volume. Choose compatible hoses and controlled load support for the complete application. Pump and hose are sold separately.
Repair kits and related equipment
- RC102K repair kit — For existing cylinders with date or product codes beginning D; this is an older-generation application. Confirm the equipment identification markings and required seal type before ordering.
- G385044 replacement stop ring — For the documented RC-Duo cylinder generation with product code beginning E. Confirm the original component before ordering.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Load Capacity | 11.2 Ton |
|---|---|
| Cylinder Type | General Purpose Hydraulic Cylinders |
| Cylinder Action | Single Acting |
| Return Type | Spring Return |
| Cylinder Material | Steel |
| Plunger Type | Solid |
| Cylinder Stroke | 1.00 in |
