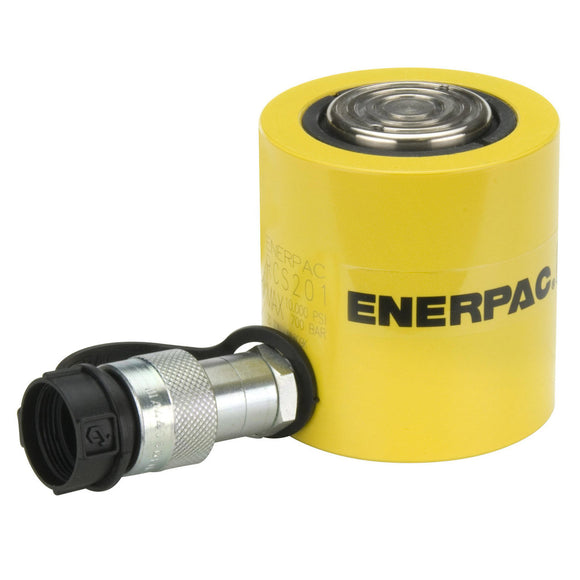

The Enerpac RCS201 is a low-height hydraulic cylinder intended for lifting where available setup height is limited. This model is specified with a rated capacity of 20 tons.
Key specifications
- Capacity: 20 tons
Product features
- Capacity: 22.1 short tons (20-ton class).
- Stroke Length: 1.75 inches.
- Collapsed Height: Just 3.88 inches - ideal for low-clearance applications.
- Extended Height: 5.63 inches.
- Plunger Type: Solid steel for stability and strength.
Selection considerations
Use the lowest-profile model that still provides the required capacity and travel, and verify the pump, hose and coupler configuration for the complete system.
Specifications
| Load Capacity | 22.1 Ton |
|---|---|
| Cylinder Type | Low Height Hydraulic Cylinders |
| Cylinder Action | Single Acting |
| Return Type | Spring Return |
| Cylinder Material | Steel |
| Plunger Type | Solid |
| Cylinder Stroke | 1.75 in |
