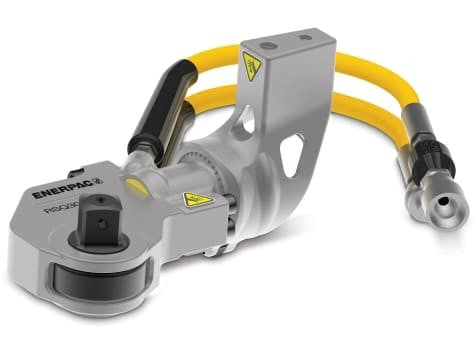

The Enerpac RSQ1500ST is an RSL-Series square drive hydraulic torque wrench set rated for 1,408 ft-lb maximum output torque at 10,000 psi. The set uses a 3/4 in square drive for controlled tightening and loosening with standard impact-quality sockets.
Key Specifications
- Series: RSQ-ST / RSL
- Wrench configuration: Square drive torque wrench set
- Maximum output torque: 1,408 ft-lb
- Square drive size: 3/4 in
- Maximum operating pressure: 10,000 psi
Set Includes
- RSL hydraulic drive unit with short whip hoses
- RSQ square drive head
- Reaction arm
Features
- Enclosed moving parts help minimize pinch points.
- 30- to 35-degree operating stroke supports efficient bolting cycles.
- Pull-type square drive release allows fast reversal for tightening or loosening.
- Torque accuracy is ±3%.
System Selection
Use the 3/4 in square drive with a correctly sized impact-quality socket and pair the set with a compatible 10,000 psi pump. See Enerpac hydraulic torque wrench pumps and use Enerpac THQ700-Series hoses to complete the hydraulic bolting system.
Specifications
| Maximum Operating Pressure | 10,000 psi |
|---|
