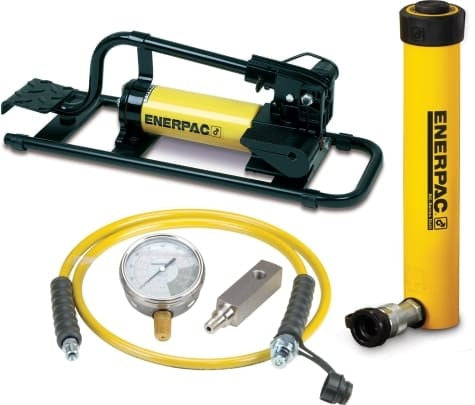

In SCR1010FP, Enerpac pairs an RC single-acting cylinder with a foot pump rather than a hand or air-powered unit. The cylinder is rated in the 10 Ton class and provides 10.13 in of travel.
Foot operation distinguishes this set from the otherwise similar hand-pump package. The cylinder still determines force and travel; the pump style determines how the operator supplies hydraulic power.
Selecting the Right Version
The RC-1010 provides the longest stroke in Enerpac’s 10-ton set group. Its 10.13 inches of travel is the reason to choose it when the task benefits from extended movement and the increased collapsed height is acceptable.
This model is best compared against other SCR sets with the same capacity but different stroke or pump options. The right choice is the one that matches both the mechanical travel and the way hydraulic power will be supplied.
Specifications
| Power Source | Manual |
|---|---|
| Pump Type | Foot Pump |
| Pump Operation | Foot Operated |
| Cylinder Compatibility | Single-Acting |
| Load Capacity | 10 Ton |
| Cylinder Type | General Purpose |
| Cylinder Stroke | 10.13 in |
| Gauge Included | Yes |
| Set Type | Cylinder & Pump Set |
