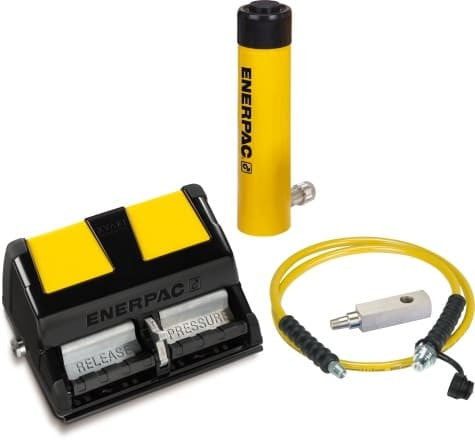

Enerpac configures SCR102XA Hydraulic Cylinder & Air Pump Set around an RC single-acting cylinder and compressed-air hydraulic power. The selected cylinder delivers 10 Ton nominal capacity with 2.13 in of stroke.
Where This Set Fits
Among the 10-ton RC choices, the 2.13-inch stroke is the compact-travel option. It suits jobs where the force requirement is clear but only a short lift, push or positioning movement is needed.
Compressed-air operation makes this set a natural choice for repeated work. The cylinder selection still defines the mechanical job; the air pump primarily changes the speed and effort of producing hydraulic flow.
This model is best compared against other SCR sets with the same capacity but different stroke or pump options. The right choice is the one that matches both the mechanical travel and the way hydraulic power will be supplied.
Specifications
| Power Source | Compressed Air |
|---|---|
| Pump Type | Air Pump |
| Pump Operation | Air Operated |
| Cylinder Compatibility | Single-Acting |
| Load Capacity | 10 Ton |
| Cylinder Type | General Purpose |
| Cylinder Stroke | 2.13 in |
| Gauge Included | Yes |
| Set Type | Cylinder & Pump Set |
