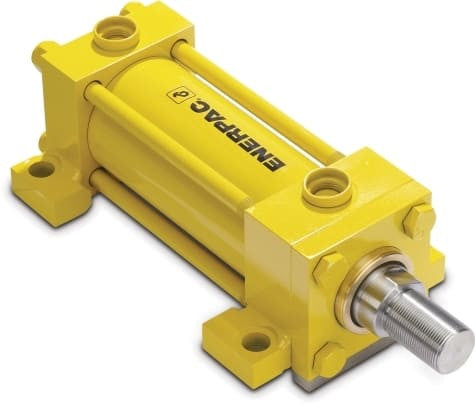

TRFM1510 Enerpac TRFM-1510 Tie Rod Cyl, 1.5" Bore, 10" Stroke, No Cush.
Model : TRFM1510 Series : TR Product Lines : Workholding Tools Foot mount cylinders provide simplest mounting option with just four bolt holes required Standard key mount is included ensuring proper mounting and adding rigidity NFPA style MS2 Compact mounting fits in tight spaces where other cylinders cannot Think Safety Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings! Pump Selection A double-acting cylinder must be powered by a pump with a 4-way valve.
Model : TRFM1510 Series : TR Product Lines : Workholding Tools Foot mount cylinders provide simplest mounting option with just four bolt holes required Standard key mount is included ensuring proper mounting and adding rigidity NFPA style MS2 Compact mounting fits in tight spaces where other cylinders cannot Think Safety Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings! Pump Selection A double-acting cylinder must be powered by a pump with a 4-way valve.
Specifications
| Push Force | 8,850 lb |
|---|---|
| Pull Force | 4,900 lb |
| Cylinder Type | Tie Rod Hydraulic Cylinders |
| Cylinder Stroke | 10.00 in |
