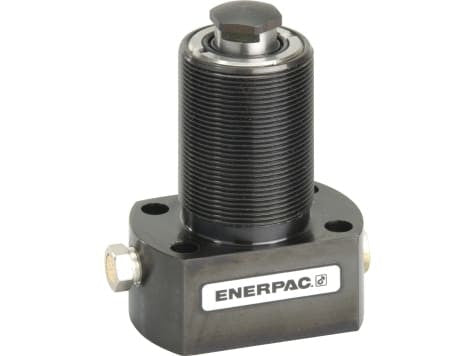

The Enerpac WFL111 is a lower-flange hydraulic work support. Its plunger contacts the workpiece before hydraulic locking holds the support in position.
Key specifications
- Maximum support capacity: 2,500 lb
- Plunger stroke: 0.40"
- Operating pressure range: 700–5,000 psi
- Mounting: lower flange
Before ordering
Select support locations to resist machining forces without distorting the workpiece. Confirm support capacity at the actual pressure, contact force and hydraulic sequencing. A work support does not replace a clamp.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Product Family | Hydraulic Cylinder Accessories |
|---|---|
| Stroke | 0.4 in |
| Maximum Operating Pressure | 5,000 psi |
| Flange Nut | FN351 |
| Manifold O Ring | ARP010 |
| Maximum Oil Flow | 60 in³/min |
| Maximum Support Force | 2,500 lb |
| Minimum Operating Pressure | 700 psi |
| Mounting Style | Lower Flange |
| Oil Capacity | 0.06 in³ |
| Plunger Contact Spring Force Advance | 3.4 lb |
| Plunger Contact Spring Force Retract | 5.2 lb |
| Weight | 1.4 lb |
