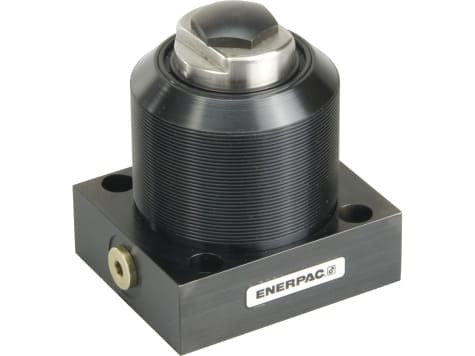

WFL221 (WFL-221) 5000 lb. Fluid Adv. SAE Work Support
Model : WFL221 Series : WFL Product Lines : Workholding Tools Plunger stays retracted until pressure is applied allowing unobstructed loading Low pressure lock-up capability enables the use of machine tool hydraulic systems High rated support capacities allow for more compact fixture design Corrosion resistant materials - compatible with most coolants and environments Threaded and manifold air vent ports allow fixturing that prevents coolants and debris from being ingested into the mechanism Minimized deflection increases machining accuracy Multiple mounting configurations for design flexibility Contact bolt included Support force and clamping
Model : WFL221 Series : WFL Product Lines : Workholding Tools Plunger stays retracted until pressure is applied allowing unobstructed loading Low pressure lock-up capability enables the use of machine tool hydraulic systems High rated support capacities allow for more compact fixture design Corrosion resistant materials - compatible with most coolants and environments Threaded and manifold air vent ports allow fixturing that prevents coolants and debris from being ingested into the mechanism Minimized deflection increases machining accuracy Multiple mounting configurations for design flexibility Contact bolt included Support force and clamping
Specifications
| Product Family | Hydraulic Cylinder Accessories |
|---|---|
| Cylinder Stroke | 0.41 in |
| Maximum Operating Pressure | 5,000 psi |
| Manifold O Ring | ARP110 |
| Maximum Oil Flow | 190 cu in/min |
| Maximum Support Force | 5,000 lb |
| Minimum Operating Pressure | 700 psi |
| Mounting Style | Lower Flange |
| Oil Capacity | 0.19 cu in |
| Plunger Contact Spring Force Advance | 2.1 lb |
| Plunger Contact Spring Force Retract | 19.5 lb |
| Weight | 4.8 lb |
