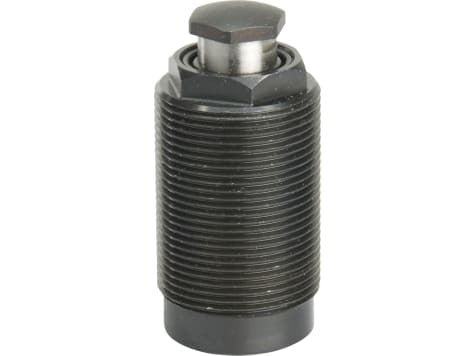

The Enerpac WFM71 is the 1,650 lb Capacity, 0.39 in Stroke, Work Support, Manifold Mount, Hydraulic Advance.
Key features
- Plunger stays retracted until pressure is applied allowing unobstructed loading
- Low pressure lock-up capability enables the use of machine tool hydraulic systems
- High rated support capacities allow for more compact fixture design
- Corrosion resistant materials - compatible with most coolants and environments
- Threaded and manifold air vent ports allow fixturing that prevents coolants and debris from being ingested into the mechanism
- Minimized deflection increases machining accuracy
Frequently asked questions
Is the WFM71 a genuine Enerpac part?
Yes. BuyEnerpac.com is an authorized Enerpac distributor and sells genuine Enerpac parts.
More parts in this category: Enerpac Hydraulic Cylinder Accessories
BuyEnerpac.com is an authorized Enerpac distributor. This item typically ships within 2-3 days.
Specifications
| Product Family | Hydraulic Cylinder Accessories |
|---|---|
| Cylinder Stroke | 0.39 in |
| Maximum Operating Pressure | 5,000 psi |
| Flange Nut | FN301 |
| Manifold O Ring | ARP017 |
| Maximum Oil Flow | 40 cu in/min |
| Maximum Support Force | 1,650 lb |
| Minimum Operating Pressure | 700 psi |
| Mounting Style | Manifold Mount |
| Oil Capacity | 0.04 cu in |
| Plunger Contact Spring Force Advance | 2 lb |
| Plunger Contact Spring Force Retract | 5.8 lb |
| Weight | 0.5 lb |
