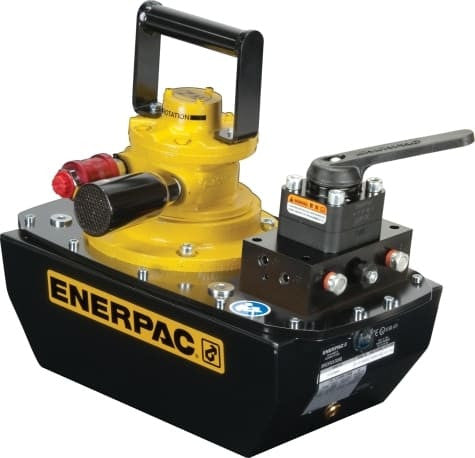

ZA4410MX Enerpac ZA4 Air Hydraulic Pump is the middle-capacity double-acting model in this group, carrying 2.6 gallons of oil with a 4-way manual valve.
Balanced Capacity for Double-Acting Systems
This reservoir size can be useful when the 1.2- and 1.8-gallon units are too small but the 5.2- or 10.3-gallon pumps add more oil volume than the circuit requires. The valve supplies advance, hold and retract so both directions of cylinder travel remain hydraulically powered.
The ZA4 air-driven Z-Class design operates in two speeds and is rated to 10,000 psi. For a smaller package compare ZA4408MX; for significantly more oil capacity, ZA4420MX moves to a 5.2-gallon reservoir.
Specifications
| Pump Series | ZA4 Series |
|---|---|
| Maximum Operating Pressure | 10,000 psi |
| Power Source | Compressed Air |
| Rated Oil Flow | 80 in³/min @ 10,000 psi |
| Flow Group | 4 |
| Pump Speed | Two-Speed |
| Pump Operation | Air Operated |
| Reservoir Capacity | 2.6 gal |
| Valve Model | VM43 |
| Valve Configuration | 4-Way, 3-Position |
| Valve Operation | Manual |
| Valve Function | Advance / Hold / Retract |
| Cylinder Compatibility | Double-Acting |
| Air Consumption | 20–100 scfm |
| Air Pressure Range | 60–100 psi |
| ATEX Certified | Yes |
| Gauge Included | No |
