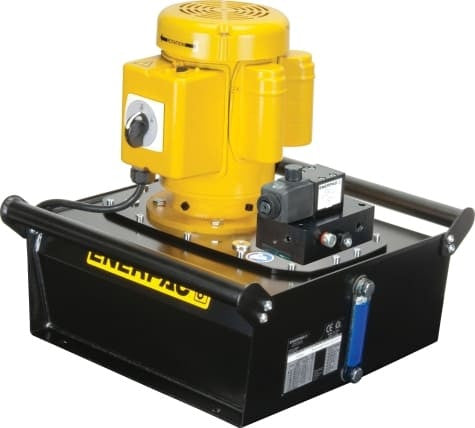

ZE3108DB is a model-specific Enerpac Electric Hydraulic Pump choice for LCD-equipped remote control. The valve behavior is intentionally simple: advance the single-acting tool, then release pressure for return. Applications that need a hydraulic hold step should use a hold-capable configuration instead.
Within the ZE range, valve choice and flow group are major selection points. ZE3 and ZE4 models use different motor sizes and rated-pressure flow levels. This model is built for 115V, single phase, 50/60 Hz power, making the electrical supply an important distinction from otherwise similar variants. With a 1.8 gal reservoir, this version occupies a specific capacity point within the series; reservoir sizing should follow the oil demand of the full circuit.
Compare this model with ZE3104DB if the choices look similar. reservoir capacity is 1.8 gal on ZE3108DB versus 1.2 gal on ZE3104DB. That distinction is more important than the shared series name when matching the pump to the system.
Check the hydraulic system's total oil demand against the 1.8 gal reservoir before final selection.
Specifications
| Pump Series | ZE Series |
|---|---|
| Power Source | Electric |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 40 in³/min @ 10,000 psi |
| Reservoir Capacity | 1.8 gal |
| Valve Model | VE32D |
| Valve Configuration | 3-way, 2-position dump valve |
| Valve Operation | Solenoid Dump |
| Cylinder Compatibility | Single-Acting |
| Voltage | 115V |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
