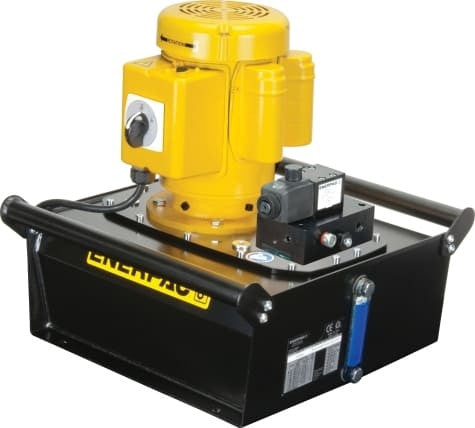

ZE3110DB is best understood by its configuration rather than by the series name alone. This Enerpac Electric Hydraulic Pump is set up for LCD-equipped remote control. Because this model carries LCD control, it offers a different operator interface from the classic/non-LCD variants in the same family.
The ZE platform is built around configurable hydraulic control. Manual, solenoid and Venturi-valve options let the same pump family serve different cylinder and operating requirements. Valve selection on this model is deliberate: a 3-way, 2-position dump valve handles advance / retract operation for single-acting equipment. This model is built for 115V, single phase, 50/60 Hz power, making the electrical supply an important distinction from otherwise similar variants.
Understanding the ZE3110DB Arrangement
Compare this model with ZE3104DB if the choices look similar. reservoir capacity is 2.6 gal on ZE3110DB versus 1.2 gal on ZE3104DB. That distinction is more important than the shared series name when matching the pump to the system.
Confirm that the connected equipment uses the single-acting circuit this model is configured to control.
Available oil volume is set by the 2.6 gal reservoir, so the connected equipment’s oil requirement should be verified before final selection.
Specifications
| Pump Series | ZE Series |
|---|---|
| Power Source | Electric |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 40 in³/min @ 10,000 psi |
| Reservoir Capacity | 2.6 gal |
| Valve Model | VE32D |
| Valve Configuration | 3-way, 2-position dump valve |
| Valve Operation | Solenoid Dump |
| Cylinder Compatibility | Single-Acting |
| Voltage | 115V |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
