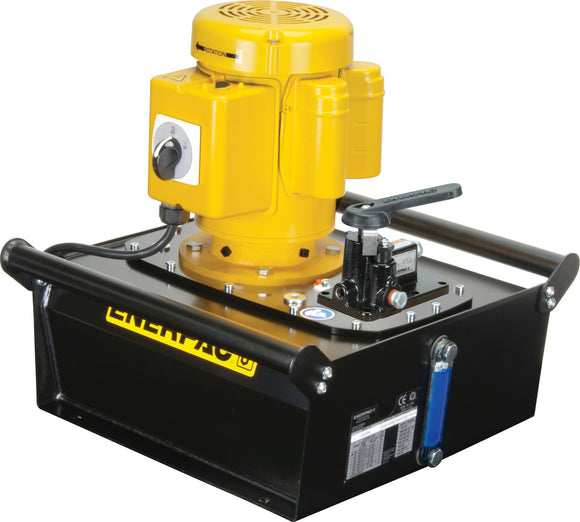

ZE3204MB is an Enerpac Electric Hydraulic Pump configured around single-acting advance / retract operation. The 1.2 gal reservoir is at the smaller end of this series, which can reduce unnecessary oil volume when the connected circuit does not require one of the larger reservoir options.
Matching ZE3204MB to the Hydraulic Circuit
If the shortlist includes ZE3208MB, focus on the configuration change: reservoir capacity is 1.2 gal on ZE3204MB versus 1.8 gal on ZE3208MB. The remaining shared family characteristics should not obscure that difference.
This pump carries a 1.2 gal reservoir. That capacity is a practical selection factor when comparing otherwise similar valve and voltage configurations. For cycle planning, the key output figure is 40 in³/min @ 10,000 psi; the motor size is 1 hp.
This is a local-control configuration; the operator changes hydraulic direction at the pump valve.
Confirm that the connected equipment uses the single-acting circuit this model is configured to control.
Specifications
| Pump Series | ZE Series |
|---|---|
| Power Source | Electric |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 40 in³/min @ 10,000 psi |
| Reservoir Capacity | 1.2 gal |
| Valve Model | VM32 |
| Valve Configuration | 3-way, 2-position manual valve |
| Valve Operation | Manual |
| Cylinder Compatibility | Single-Acting |
| Voltage | 115V |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
