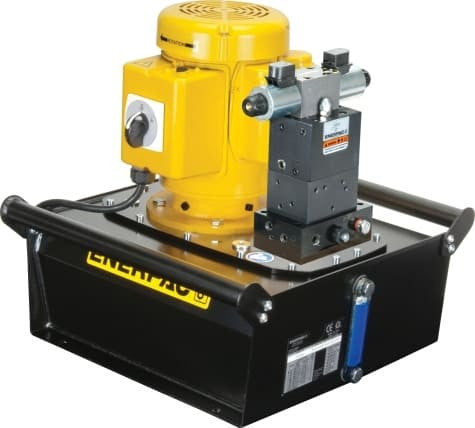

ZE3310SB is a model-specific Enerpac Electric Hydraulic Pump choice for LCD-equipped remote control. Because this model carries LCD control, it offers a different operator interface from the classic/non-LCD variants in the same family.
How to Choose the ZE3310SB Version
The pendant moves pump control away from the power unit, which is useful when the operator needs to watch the tool or cylinder. The LCD control package adds pump status and diagnostic information. The control package is a 3-way, 3-position solenoid valve for single-acting circuits, providing advance / hold / retract movement.
Confirm that the connected equipment uses the single-acting circuit this model is configured to control.
Compare this model with ZE3304SB if the choices look similar. reservoir capacity is 2.6 gal on ZE3310SB versus 1.2 gal on ZE3304SB. That distinction is more important than the shared series name when matching the pump to the system.
Specifications
| Pump Series | ZE Series |
|---|---|
| Power Source | Electric |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 40 in³/min @ 10,000 psi |
| Reservoir Capacity | 2.6 gal |
| Valve Model | VE33 |
| Valve Configuration | 3-way, 3-position solenoid valve |
| Valve Operation | Solenoid |
| Cylinder Compatibility | Single-Acting |
| Voltage | 115V |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
