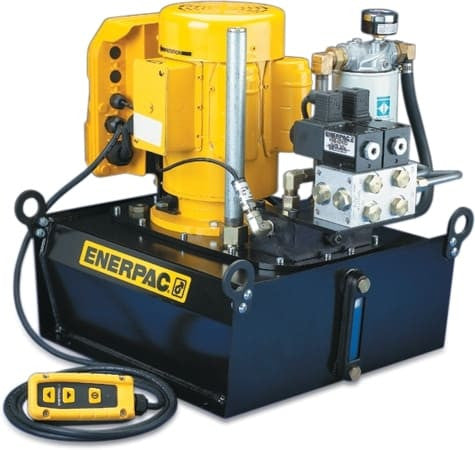

For a system that requires LCD-equipped remote control, ZE3410SB is the corresponding Enerpac Electric Hydraulic Pump configuration. The LCD-equipped control package is a meaningful upgrade when operating information and diagnostics at the pump are useful to the application.
Available oil volume is set by the 2.6 gal reservoir, so the connected equipment’s oil requirement should be verified before final selection. For cycle planning, the key output figure is 40 in³/min @ 10,000 psi; the motor size is 1 hp.
Model-Level Guidance for ZE3410SB
The adjacent model ZE3404SB helps clarify the choice. reservoir capacity is 2.6 gal on ZE3410SB versus 1.2 gal on ZE3404SB; that is the key separation between these two otherwise related pumps.
Confirm that the connected equipment uses the double-acting circuit this model is configured to control.
Specifications
| Pump Series | ZE Series |
|---|---|
| Power Source | Electric |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 40 in³/min @ 10,000 psi |
| Reservoir Capacity | 2.6 gal |
| Valve Model | VE43 |
| Valve Configuration | 4-way, 3-position solenoid valve |
| Valve Operation | Solenoid |
| Cylinder Compatibility | Double-Acting |
| Voltage | 115V |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
