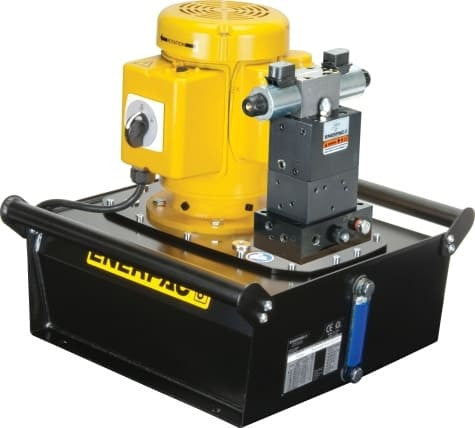

Within the Enerpac Electric Hydraulic Pump range, ZE3440SB is differentiated by its LCD-equipped remote control setup. The 10.3 gal reservoir is at the larger end of this series, providing more available oil volume than the smaller-reservoir variants.
The ZE platform is built around configurable hydraulic control. Manual, solenoid and Venturi-valve options let the same pump family serve different cylinder and operating requirements. Remote pendant operation allows the operator to remain closer to the hydraulic work while controlling the pump. The LCD control package adds pump status and diagnostic information. Valve selection on this model is deliberate: a 4-way, 3-position solenoid valve handles advance / hold / retract operation for double-acting equipment.
Application Fit for ZE3440SB
If the shortlist includes ZE3404SB, focus on the configuration change: reservoir capacity is 10.3 gal on ZE3440SB versus 1.2 gal on ZE3404SB. The remaining shared family characteristics should not obscure that difference.
Check the hydraulic system's total oil demand against the 10.3 gal reservoir before final selection.
Specifications
| Pump Series | ZE Series |
|---|---|
| Power Source | Electric |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 40 in³/min @ 10,000 psi |
| Reservoir Capacity | 10.3 gal |
| Valve Model | VE43 |
| Valve Configuration | 4-way, 3-position solenoid valve |
| Valve Operation | Solenoid |
| Cylinder Compatibility | Double-Acting |
| Voltage | 115V |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
