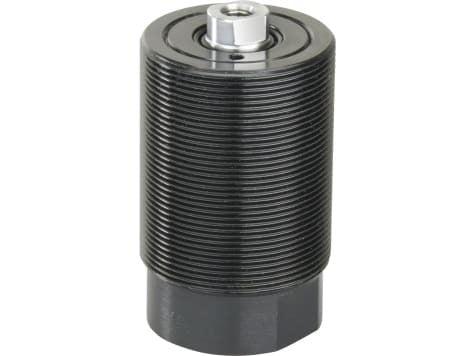

CDT18381 Enerpac Double-Acting Threaded Body Cylinder, 3,900 lb Push / 2,330 lb Pull, 1.50 in Stroke

The Enerpac CDT18381 is a double-acting threaded body cylinder from the CDT series. Hydraulic pressure drives it both ways, giving 3,900 lb pushing and 2,330 lb pulling at 5,000 psi over a 1.50 in stroke. Because the retract stroke is powered, you can fit clamping accessories to the plunger for push and pull action, and it suits high-cycle work such as production punching.

Features

• 1.875-16 UN threaded body for exact height positioning
• Center-tapped plunger (.313-24 UNF) for attachments
• Powered retract: better control in the unclamp cycle and less sensitive to back pressure from long tube runs
• SAE #4 oil ports
• Buna-N and polyurethane seals

Sizing

Effective area is 0.77 in² pushing and 0.46 in² pulling. A full stroke uses 1.18 in³ to advance and 0.70 in³ to retract. Length is 3.68 in retracted and 5.18 in extended; weight 3.4 lb. Workholding circuits often run below 5,000 psi; at 2,000 psi this cylinder gives about 1,540 lb of push and at 3,000 psi about 2,310 lb.

How it compares

Other strokes at 3,900 lb: CDT18131 (0.51 in), CDT18251 (0.98 in), CDT18501 (1.97 in). For a simpler single-line circuit, the single-acting CST series offers spring-return equivalents.

Before you order: Control it with a 4-way valve so both ports are powered; mounting flanges and flange nuts for the body thread are sold separately.
