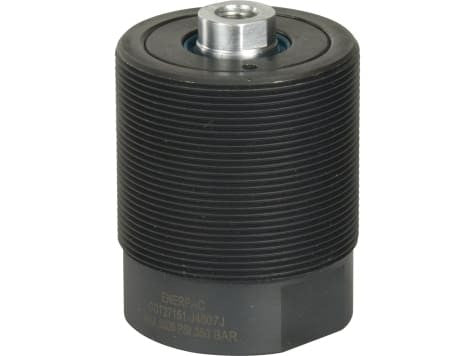

CDT40251 Enerpac Double-Acting Threaded Body Cylinder, 8,800 lb Push / 5,870 lb Pull, 0.99 in Stroke

The Enerpac CDT40251 is a double-acting threaded body cylinder from the CDT series. Hydraulic pressure drives it both ways, giving 8,800 lb pushing and 5,870 lb pulling at 5,000 psi over a 0.99 in stroke. Because the retract stroke is powered, you can fit clamping accessories to the plunger for push and pull action, and it suits high-cycle work such as production punching.

Features

• 2.500-16 UN threaded body for exact height positioning
• Center-tapped plunger (.500-13 UNC) for attachments
• Powered retract: better control in the unclamp cycle and less sensitive to back pressure from long tube runs
• SAE #4 oil ports
• Buna-N and polyurethane seals

Sizing

Effective area is 1.76 in² pushing and 1.17 in² pulling. A full stroke uses 1.73 in³ to advance and 1.15 in³ to retract. Length is 3.56 in retracted and 4.55 in extended; weight 4.6 lb. Workholding circuits often run below 5,000 psi; at 2,000 psi this cylinder gives about 3,520 lb of push and at 3,000 psi about 5,280 lb.

How it compares

Other strokes at 8,800 lb: CDT40131 (0.51 in), CDT40381 (1.50 in), CDT40501 (1.97 in). For a simpler single-line circuit, the single-acting CST series offers spring-return equivalents.

Before you order: Control it with a 4-way valve so both ports are powered; mounting flanges and flange nuts for the body thread are sold separately.
