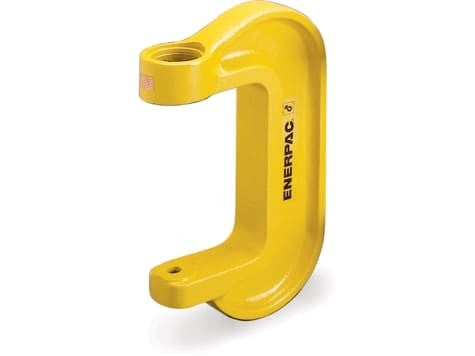

The Enerpac A210 is a 10 ton C-clamp press frame built to work with Enerpac RC-series cylinders. It provides up to 9 in of vertical daylight and 3.25 in of bed width, and weighs 37 lb.
C-clamp press frames turn a cylinder into a portable press for bearings, bushings and pins, on the bench or in the field. Because the frame works in any position, it can be used where a full shop press will not fit.
Key features
- 10 ton capacity
- Operational in all positions
- Push Pin A183 For applications requiring precision pressing, such as shaft removal and insertion. This attachment fits 10 ton cylinders and requires the use of a threaded adaptor saddle A13
- Smooth Saddle A185 for pressing applications of delicate parts, such as aluminum castings, this saddle decreases surface marks during the pressing application. Requires 10-ton cylinder and threaded adaptor saddle A13
Before you order
The cylinder and pump are not included. Enerpac lists RC101, RC102, RC104, RC106, RC108, RC1010, RC1012, RC1014 as compatible. Call us if you want help matching a cylinder and pump.
Frequently asked questions
Does the A210 come with a cylinder?
No. The A210 is the frame only. Order a compatible Enerpac RC cylinder and a pump separately.
Which cylinders fit the Enerpac A210?
Enerpac lists RC101, RC102, RC104, RC106, RC108, RC1010, RC1012, RC1014 as compatible with the A210.
What is the daylight of the A210?
Up to 9 in of vertical daylight, with 3.25 in of bed width.
BuyEnerpac.com is an authorized Enerpac distributor. This item typically ships within 2-3 days. Questions about fit or application? Call (704) 463-1070.
Specifications
| Product Type | C-Clamp Press |
|---|---|
| Load Capacity | 10 Ton |
| Maximum Operating Pressure | 10,000 psi |
| Capacity Range | 6-10 Ton |
| Maximum Vertical Daylight | 9 in |
| Compatible Products | RC101, RC102, RC104, RC106, RC108, RC1010, RC1012, RC1014 |
| Weight | 37 lb |
