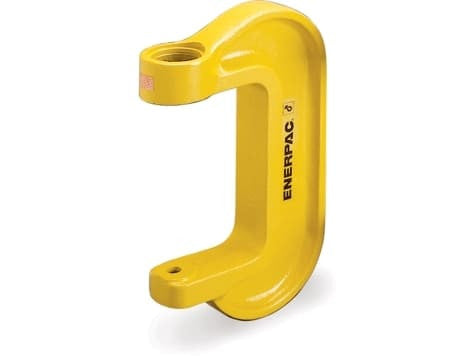

The Enerpac A220 is a 20 ton C-clamp press frame built to work with Enerpac RC-series cylinders. It provides up to 11.88 in of vertical daylight and 3.75 in of bed width, and weighs 83 lb.
C-clamp press frames turn a cylinder into a portable press for bearings, bushings and pins, on the bench or in the field. Because the frame works in any position, it can be used where a full shop press will not fit.
Key features
- 20 ton capacity
- Operational in all positions
Before you order
The cylinder and pump are not included. Enerpac lists RC251, RC252, RC254, RC256, RC258, RC2510, RC2512, RC2514 as compatible. Call us if you want help matching a cylinder and pump.
Frequently asked questions
Does the A220 come with a cylinder?
No. The A220 is the frame only. Order a compatible Enerpac RC cylinder and a pump separately.
Which cylinders fit the Enerpac A220?
Enerpac lists RC251, RC252, RC254, RC256, RC258, RC2510, RC2512, RC2514 as compatible with the A220.
What is the daylight of the A220?
Up to 11.88 in of vertical daylight, with 3.75 in of bed width.
BuyEnerpac.com is an authorized Enerpac distributor. This item typically ships within 2-3 days. Questions about fit or application? Call (704) 463-1070.
Specifications
| Product Type | C-Clamp Press |
|---|---|
| Load Capacity | 20 Ton |
| Maximum Operating Pressure | 10,000 psi |
| Capacity Range | 11-25 Ton |
| Maximum Vertical Daylight | 11.88 in |
| Compatible Products | RC251, RC252, RC254, RC256, RC258, RC2510, RC2512, RC2514 |
| Weight | 83 lb |
