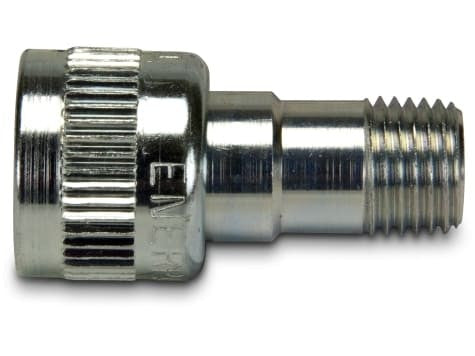

The Enerpac AR630 is the female half of an Enerpac regular hydraulic coupler with a 1/4 in NPTF connection. Maximum flow capacity is 462 cubic inches per minute. Connected length, with the male and female halves joined, is 2.61 in.
Enerpac regular couplers connect hoses to cylinders, pumps and tools so you can disconnect and move equipment without opening the hydraulic system. A complete connection uses one male half and one female half.
Key features
- 1/4 in Regular Coupler
- For use with small cylinders and hand pumps
- Includes female steel dust cap
Frequently asked questions
Which part of the coupler is the AR630?
It is the female half. It mates with the AH630 male half.
What thread does the AR630 have?
1/4 in NPTF.
What do I need for a complete connection?
One male half and one female half of the same coupler series. Order the matching half if your equipment does not already have it.
BuyEnerpac.com is an authorized Enerpac distributor. This item typically ships within 2-3 days. Questions about fit or application? Call (704) 463-1070.
Specifications
| Configuration | Female Half |
|---|---|
| Maximum Flow Capacity | 462 cu in/min |
