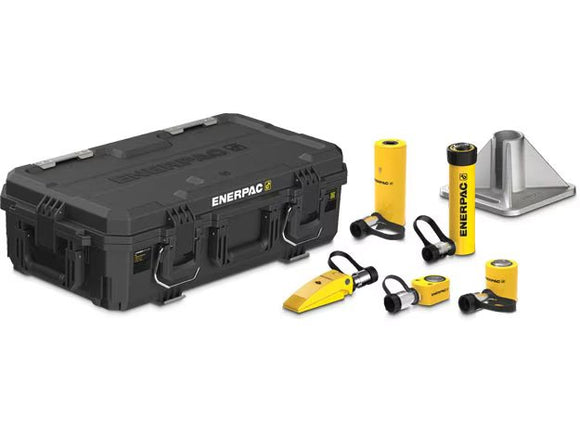

The Enerpac ARMRTK10 gives maintenance teams a versatile selection of hydraulic cylinders for lifting, positioning, spreading and access in confined spaces. The kit combines general-purpose, low-height and hollow-plunger cylinders with a Wedgie spreading tool and RC-Series base plate, all organized in a rugged Armor Stack case.
ARMRTK10 Kit Includes
- Armor Stack Modular Case (ARMRC8)
- Base plate for 10-ton RC-Series cylinders (JBI10)
- 6.13-inch stroke general-purpose hydraulic cylinder (RC106)
- 1.5-inch stroke low-height hydraulic cylinder (RCS101)
- Hydraulic Wedgie spreading cylinder (WR5)
- Single-acting hollow-plunger hydraulic cylinder (RCH123)
- 0.44-inch stroke low-height hydraulic cylinder (RSM100)
Key Specifications
- Maximum operating pressure: 10,000 psi (700 bar)
- Case dimensions: 30.5 x 17 x 9 in (775 x 432 x 229 mm)
- Kit weight: 62 lb (28 kg)
Armor Stack Case Protection
The modular case uses metal-to-metal latching for stable stacking and is validated against MIL-STD-810-H, ATA300, DEF-STAN and IP67 performance requirements. Rugged, sealed construction helps protect the cylinder set from impact, dust, water intrusion and harsh transport conditions.
Specifications
| Product Family | Armor Stack |
|---|---|
| Cylinder Type | Multiple Cylinders |
| Load Capacity | 10 Ton |
| Maximum Operating Pressure | 10,000 psi |
| Case Count | 1 |
| Case Dimensions | 30.5 x 17 x 9 in |
| Case Model | ARMRC8 |
| Included Components | ARMRC8 - Armor Stack Modular Case; JBI10 - Base Plate for 10-Ton RC-Series Cylinders; RC106 - 6.13-Inch Stroke General-Purpose Hydraulic Cylinder; RCS101 - 1.5-Inch Stroke Low-Height Hydraulic Cylinder; WR5 - Hydraulic Wedgie Spreading Cylinder; RCH123 - Single-Acting Hollow-Plunger Hydraulic Cylinder; RSM100 - 0.44-Inch Stroke Low-Height Hydraulic Cylinder |
| Set Type | Cylinder Kit |
