The Enerpac ARMRTS10HTB brings a broad selection of hydraulic lifting and spreading tools together in a mobile Armor Stack system. The set combines a P392 two-speed hand pump, hose and gauge adapter with general-purpose, low-height, hollow-plunger and spreading cylinders. Two modular cases help maintenance teams organize, transport and deploy the complete system in the field.

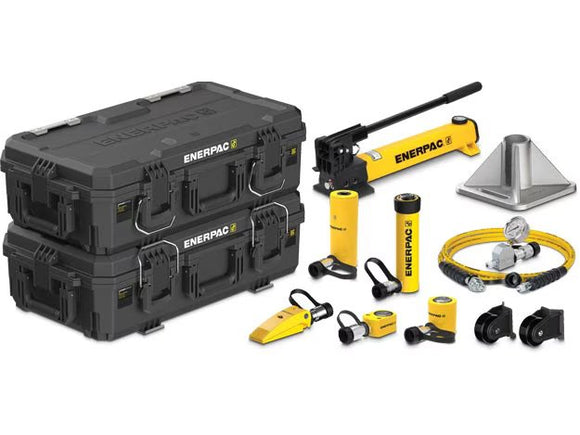

ARMRTS10HTB Set Includes
- Two Armor Stack Modular Cases (ARMRC8)
- Two-speed lightweight hydraulic hand pump (P392)
- 45-degree angled gauge adapter assembly (GA45GC)
- 6-foot high-pressure hydraulic hose (HC7206C)
- Mobility Transport Kit (ARMRT2)
- Base plate for 10-ton RC-Series cylinders (JBI10)
- 6.13-inch stroke general-purpose hydraulic cylinder (RC106)
- 1.5-inch stroke low-height hydraulic cylinder (RCS101)
- Hydraulic Wedgie spreading cylinder (WR5)
- Single-acting hollow-plunger hydraulic cylinder (RCH123)
- 0.44-inch stroke low-height hydraulic cylinder (RSM100)
Built for Industrial Transport
Armor Stack cases use metal-to-metal latching for secure stacking and are validated against MIL-STD-810-H, ATA300, DEF-STAN and IP67 performance requirements. The system is designed to protect hydraulic tools from impact, dust, water intrusion, temperature changes and rough transport.
Specifications
| Product Family | Armor Stack |
|---|---|
| Pump Model | P392 |
| Pump Type | Hand Pump |
| Cylinder Type | Multiple Cylinders |
| Load Capacity | 10 Ton |
| Maximum Operating Pressure | 10,000 psi |
| Power Source | Manual |
| Pump Speed | Two-Speed |
| Pump Operation | Hand Operated |
| Capacity Range | 6-10 Ton |
| Case Count | 2 |
| Case Dimensions | 30.5 x 17 x 9 in |
| Case Model | ARMRC8 |
| Hose Length | 6 ft |
| Included Components | ARMRC8 - Armor Stack Modular Case (Qty 2); P392 - Two-Speed Lightweight Hydraulic Hand Pump; GA45GC - 45-Degree Angled Gauge Adapter Assembly; HC7206C - 6-Foot High-Pressure Hydraulic Hose; ARMRT2 - Mobility Transport Kit; JBI10 - Base Plate for 10-Ton RC-Series Cylinders; RC106 - 6.13-Inch Stroke General-Purpose Hydraulic Cylinder; RCS101 - 1.5-Inch Stroke Low-Height Hydraulic Cylinder; WR5 - Hydraulic Wedgie Spreading Cylinder; RCH123 - Single-Acting Hollow-Plunger Hydraulic Cylinder; RSM100 - 0.44-Inch Stroke Low-Height Hydraulic Cylinder |
| Set Type | Cylinder & Pump Set |
