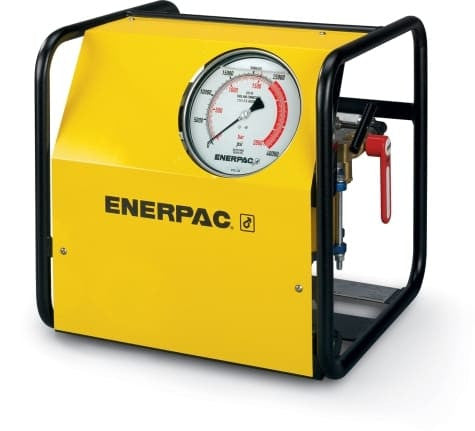

The Enerpac ATP1500 is an air tensioning pump with 1.0 gal usable oil capacity and pressure control.
Key specifications
- Maximum operating pressure: 21,750 psi
- Oil capacity: 1.0 gal usable
- Valve: pressure control
- Application: hydraulic bolt tensioning
- Air pressure range: 80–90 psi
- Pump operation: two-speed
Before ordering
Confirm the tool pressure rating, required oil volume, valve operation and hose connections before ordering. Confirm the required air supply and air preparation. Use only compatible ultra-high-pressure tensioning tools, hoses and couplers.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Series | ATP |
|---|---|
| Pump Series | ATP Series |
| Maximum Operating Pressure | 21,750 psi |
| Power Source | Compressed Air |
| Rated Oil Flow | 4 in³/min @ 21,750 psi |
| Pump Operation | Air Operated |
| Reservoir Capacity | 1.0 gal |
| Air Consumption | 70 scfm |
| Air Pressure Range | 80–90 psi |
| ATEX Certified | Yes |
| Gauge Included | Yes |
