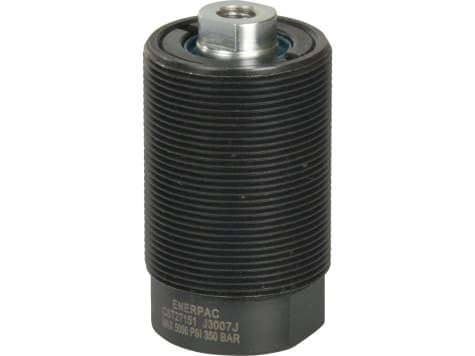

CST27151 Enerpac Single-Acting Threaded Body Cylinder, 6,110 lb, 0.59 in Stroke

The Enerpac CST27151 is a single-acting, spring-return threaded body cylinder from the CST series, rated 6,110 lb at 5,000 psi with a 0.59 in stroke. Its 1.625-16 UN body thread lets you screw it straight into a fixture or bracket and set the plunger height exactly, which makes it a compact choice for positioning, holding and ejecting parts where space is tight.

Features

• Threaded body for exact positioning and easy installation
• Center-tapped plunger (.375-16 UNC) holds contact buttons and other attachments
• Spring return keeps tubing simple: one hydraulic line per cylinder
• SAE #4 oil port
• Buna-N and polyurethane seals

Sizing

Effective area is 1.22 in² and a full stroke uses 0.72 in³ of oil. The CST27151 is 2.87 in long retracted and 3.46 in extended and weighs 1.4 lb. Workholding circuits often run below 5,000 psi; at 2,000 psi this cylinder gives about 2,440 lb of force and at 3,000 psi about 3,660 lb.

How it compares

Other CST cylinders with the same 1.625-16 UN body: CST27251 (0.98 in stroke), CST27501 (1.97 in stroke).

If you need powered retraction or high cycle rates, the double-acting CDT series covers the same force class (for example CDT27151).

Before you order: The return spring needs at least 580 psi to overcome, so set your circuit above that; use a 3-way valve or a single-acting workholding circuit; mounting flanges and flange nuts for the 1.625-16 UN thread are sold separately.
